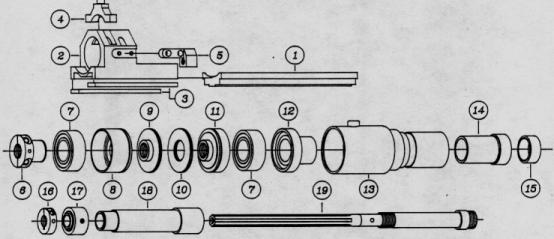

Key

Part #

Description

Pricing

03251-23

Housing Spindle Assembly

$3880.00

1

02068-30

Toolslide Way

$577.00

2

02068-59

Housing

$862.00

3

02068-24

GIB

$44.00

4

03251-37

Clamping Link

$185.00

5

02068-35

Stop Block

$93.00

6

03251-29

Adjusting Nut

$105.00

7

D-17878

Bearing

$72.00

8

03251-11

Bearing Retainer

$135.00

9

03251-6

Seal Ring

$80.00

10

03251-9

Retainer and Ring

$46.00

11

03251-15

Bearing Retainer

$125.00

12

03251-12

Bearing Retainer

$124.00

13

03251-19

Housing

$500.00

14

03251-14

Bearing Housing

$130.00

15

D-17877

Bearing

$192.00

16

XA-612

Split Locknut

$43.00

17

03251-32

Air Distributor

$265.00

18

03251-17

Collet Sleeve

$274.00

19

03251-20

Drive Shaft

$380.00

TG-976363

Low HD Screw

$0.45

02502-22

Retaining Ring

$0.60

1221

SC HD CP Screw

$0.66

03251-10

Bearing Spacer

$31.00

50313

Hex Jam Nut

$.033

1928

SQ HD ST Screw

$2.35

1174

SC HD CP Screw

$.025

A-523

SC HD CP Screw

$.020

1102

SC HD CP Screw

$0.40

W-421

Washer

$3.35

02510-38

Retaining Ring

$6.25

01829-40

O-Ring

$0.80

01829-28

O-Ring

$.085

02508-8

Retaining Ring

$1.25

01829-31

O-Ring

$1.10

Key

Part #

Description

Pricing
