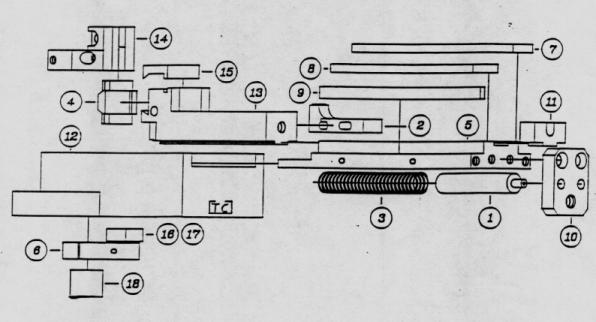

Back Finish Slide
Assembly and Parts
9/16",
1" RA, RAN 6
Key
|
Part
#
|
Description
|
Pricing
|
|
02066-54
|
Backfinishing
Slide Assembly
|
$3450.00
|
1
|
02066-8
|
Pin (2-required)
|
$44.65
|
2
|
02066-9
|
Stop Block
|
$96.00
|
3
|
02066-16
|
Spring
|
$3.90
|
4
|
02066-17
|
Double Dovetail
|
$135.00
|
5
|
02066-27
|
Slide Way
|
$480.00
|
6
|
02066-28
|
Actuating Lever
|
$226.00
|
7
|
02066-29
|
Top Gib
|
$81.00
|
8
|
02066-30
|
Wide Top Gib
|
$93.00
|
9
|
02066-31
|
Side Gib
|
$77.00
|
10
|
02066-32
|
Front Plate
|
$60.00
|
11
|
02066-33
|
Top Block
|
$50.00
|
12
|
02066-41
|
Tool Holder Base
|
-----------
|
13
|
02066-45
|
Tool Holder Slide
|
$538.00
|
14
|
02066-46
|
Tool Holder
|
$211.00
|
15
|
02066-47
|
Top Plate
|
$40.00
|
16
|
01873-65
|
Block
|
$62.00
|
17
|
02066-14
|
Stud
|
$8.50
|
18
|
C-17158
|
Bushing
|
$8.60
|
Key
|
Part
#
|
Description
|
Pricing
|
TO
ORDER:
email:
sales@toolingconnection.com
Or
Call
419-594-3339 and ask
for sales
|
